FSS電動天棚簾

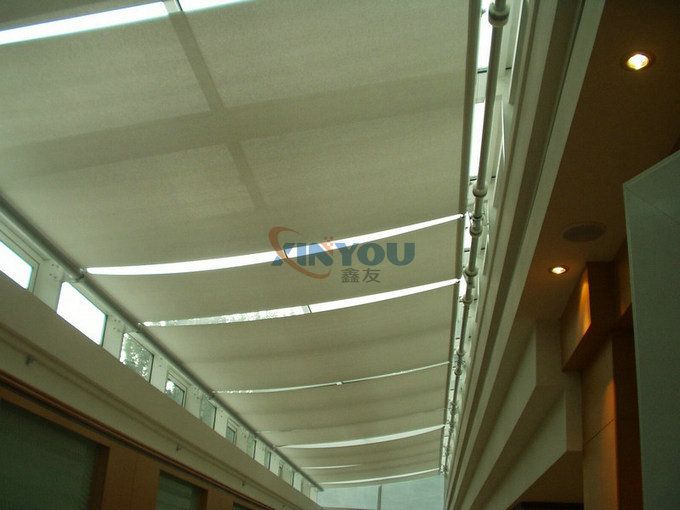

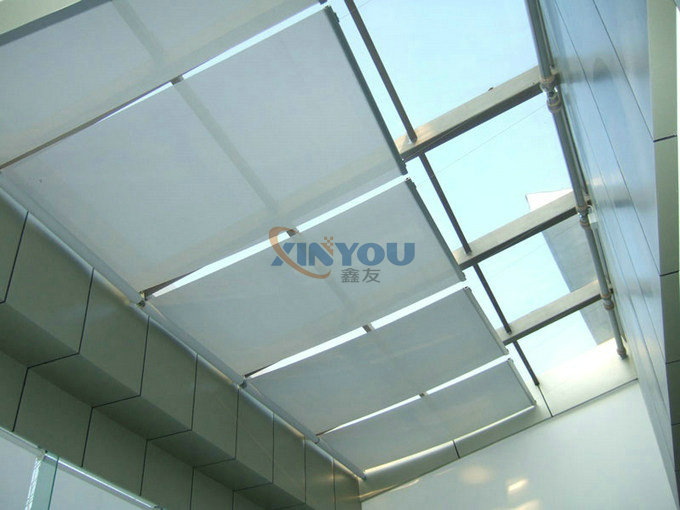

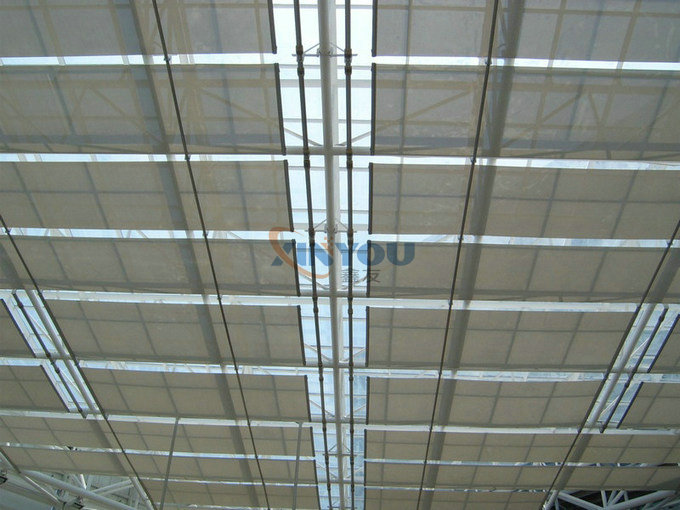

FSS電動天棚簾應用
FSS電動天棚簾應用
FSS電動天棚簾應用
FSS電動天棚簾應用
簡介
系 統：彈簧張力系統。
動 力：多種管狀電機可選。
導向系統：面積較大時，采用導軌或鋼絲繩導向。
面料選擇：具備一定抗拉強度的眷戀面料。
開合模式：單開（特定條件下可以實行雙開）
控制方式：可選配無線電、紅外控制系統及手動開關等，亦可實現群控、智能等多種控制方式。
效 果：使用時，面料平整的張緊著，裝飾效果簡潔明快。
應用場所：彎曲、傾斜或水平的中小型遮陽場所，如酒店、咖啡廳等玻璃頂。
|
System: |
Double tracks and run in level |
|
Dynamic: |
double output motor to make sure the track operation in same speed and ensure the roof blinds synchronous open and close. |
|
Driving Mode: |
Tracked driving. |
|
Fabric Choice: |
Standard and sunscreen fabric. |
|
Open and close model: |
single open, double open. |
|
Control Method: |
Outlay wireless controller, wireless remote control is adopted, also manual and intelligent control also could be realized. |
|
Effect: |
The fabric looks average wave as the roof blinds spread totally. |
|
Application: Medium or small sunshade place. It is widely used in civil and commercial place such as the Residences, flower stand, glass house, coffee palace, etc. |
|

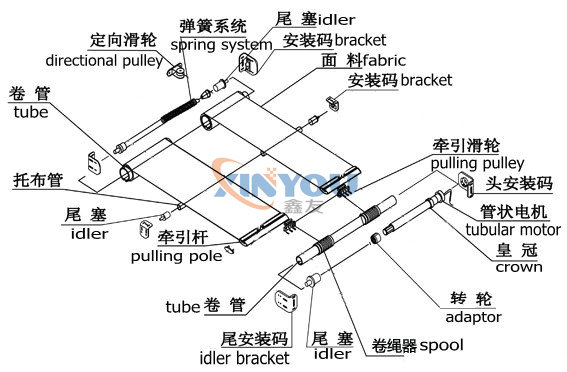

產品結構示意圖
電機參數/Motor Parameters
|
型號 |
電源 |
功率 |
力矩 |
轉速 |
行程 |
|
XY50A-6/22 |
220V 50HZ |
120W |
12Nm |
22rpm |
32/42圈 |
|
XY50A-30/12 |
220V 50HZ |
160W |
30Nm |
12rpm |
26圈 |
|
XY50A-40/12 |
220V 50HZ |
200W |
40Nm |
12rpm |
26圈 |
|
XY50A-50/12 |
220V 50HZ |
240W |
50Nm |
12rpm |
26圈 |
|
XY50B-12/22 |
220V 50HZ |
120W |
12Nm |
22rpm |
32/42圈 |
